Safety glass specification comes up regularly in residential renovations, commercial fit-outs, and any project that involves replacing glass near doors, on floors, or in overhead positions. The team behind glass replacement and repair services across Northern Virginia, DC, and Maryland handles safety glass installation across all these applications.
Getting the right type in the right location is both a safety requirement and a building code obligation. Advanced Window & Glass Repair advises on safety glass specification as a standard part of any glass replacement project. This guide covers what safety glass is, how each type works, and where building codes require it.

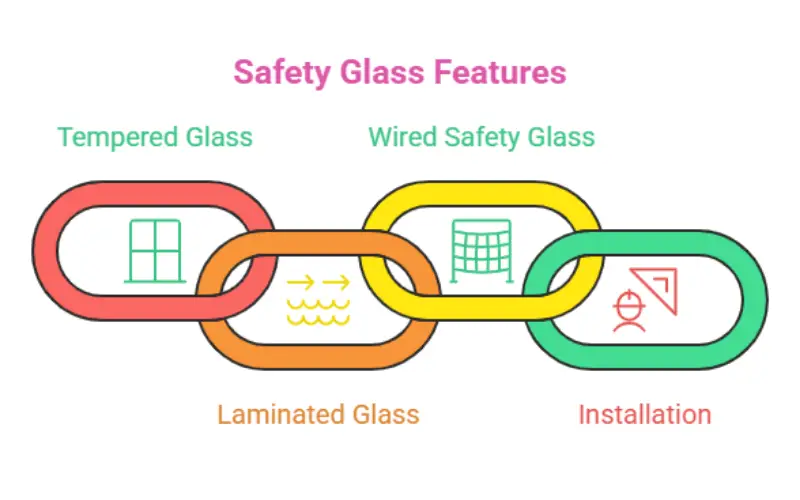

What Makes Glass “Safety Glass”
Standard annealed glass, the glass used in most windows before the widespread adoption of safety standards, breaks into large, irregular, sharp-edged fragments. These fragments cause serious lacerations on contact and can be lethal in high-energy break events. Safety glass is manufactured or processed to eliminate this hazard through one of two mechanisms: it either breaks into small, blunt-edged pieces that reduce laceration risk, or it holds together after breaking so that fragments do not scatter.
Both mechanisms satisfy the definition of safety glass used in U.S. building codes. The relevant federal standard is CPSC 16 CFR Part 1201, which covers architectural glazing in residential and commercial locations where human impact is likely. Products must be tested at specific impact energy levels to carry the safety glazing certification mark. Without this mark, glass installed in a code-required safety glazing location is a code violation, regardless of the glass type.
Safety glass is also categorised by impact energy rating. Category I covers lighter impact loads, typically residential applications. Category II covers heavier impact loads, applicable to commercial doors, large residential panels, and any glazing where higher-energy impacts are foreseeable.
Tempered Glass
Tempered glass is produced by heating standard annealed glass to approximately 620°C and then rapidly cooling it with jets of cold air. This process, called thermal tempering, creates a state of compression in the outer surfaces and tension in the interior. The resulting glass is four to five times stronger than annealed glass of the same thickness and significantly more resistant to thermal stress.
When tempered glass breaks, the compressed outer layer releases energy that causes the glass to fragment into small, granular pieces. These pieces have no sharp edges in the way that annealed glass fragments do. This breakage pattern is the defining safety characteristic of tempered glass and the reason building codes require it in shower enclosures, glass doors, and sidelites adjacent to entry doors.
The critical limitation of tempered glass is that it cannot be cut, drilled, or modified after the tempering process. Any fabrication must be completed before the glass enters the tempering oven. If a tempered panel is ordered to the wrong size, it must be replaced. It cannot be trimmed on-site. Residential glass repair projects requiring tempered glass across Northern Virginia, DC, and Maryland are measured precisely before ordering to prevent this.
Tempered glass carries a small certification mark, usually etched or printed in a corner, that identifies it as tempered and states the applicable standard. If no mark is visible, the glass may not be tempered. A professional inspection confirms the glass type.
Laminated Glass
Laminated glass is made by bonding two or more glass panes around one or more plastic interlayers, typically polyvinyl butyral (PVB). The assembly is bonded under heat and pressure. When laminated glass breaks, the interlayer holds the fragments in place. The glass cracks but does not scatter. This behaviour is fundamentally different from tempered glass and makes laminated glass the correct choice where glass retention after breakage is required.
Windshields in vehicles are the most familiar application of laminated glass. After an impact, the windshield cracks but holds together on the interlayer, preventing the driver and passengers from being exposed to glass fragments or to the opening. The same principle applies to skylights, overhead glazing, hurricane windows, and security applications.
Laminated glass provides a secondary benefit that tempered glass does not: it blocks approximately 99 percent of ultraviolet radiation through the PVB interlayer. This protects interior furnishings, flooring, and occupants from UV exposure without requiring additional coatings. It also attenuates sound more effectively than tempered glass of equivalent thickness because the PVB layer absorbs acoustic energy.
After a significant impact, a laminated glass panel that has cracked but remains in the opening still provides a temporary barrier. It can be left in place while a replacement panel is sourced, unlike a shattered tempered glass panel which must be replaced immediately.Commercial glass repair services cover urgent laminated glass assessment and replacement for storefronts and commercial glazing across Northern Virginia, DC, and Maryland.
Wire Glass and Fire-Rated Glas
Wire glass is manufactured by embedding a steel mesh within the glass during the rolling process. The mesh holds the glass together when it cracks, similar to the way a PVB interlayer holds laminated glass. Wire glass was historically the standard fire-rated glazing material in commercial buildings across North America.
Current building code updates in most U.S. jurisdictions have replaced wire glass with fire-rated laminated glass as the preferred fire glazing material. Wire glass does not meet the CPSC safety glazing standard for impact resistance. The mesh reduces the glass’s ability to withstand impact loads below the threshold required. Wire glass is therefore no longer accepted in locations that require both fire rating and safety glazing. Properties with older wire glass installations in code-required safety glazing locations should have the glass assessed against current requirements.
Fire-rated glass is a separate product category from standard safety glass. It is tested to resist fire and heat transmission for a specified period, typically 20 to 90 minutes depending on the application. Fire-rated glass must carry a label specifying the fire rating and the testing standard. Like tempered glass, it cannot be cut or modified in the field and must be ordered to the exact size required.
Other Safety Glass Types
Beyond tempered, laminated, and fire-rated glass, several other safety glass types suit specific applications.
Thermoplastic glazing materials such as polycarbonate and acrylic are used in impact-critical or vandal-prone applications. Polycarbonate is significantly more impact-resistant than glass of equivalent thickness and does not shatter. It is used in riot screens, machine guards, and high-security glazing. The limitations are lower scratch resistance compared to glass and UV yellowing over time without specific UV-stable coatings.
Bulletproof (forced-entry resistant) glass is a multi-layer laminated assembly that combines glass and polycarbonate layers to resist ballistic or forced-entry impacts. Thickness ranges from approximately 20mm for lower-rated systems to 50mm or more for ballistic-rated glazing. It is used in banks, government buildings, jewellery stores, and any application where the glazing must remain intact under sustained attack.
Electrochromic (smart) glass can change its light transmission properties in response to an electrical signal. It does not provide impact resistance beyond standard annealed glass unless combined with a laminated construction. It is not classified as safety glass on its own.
Chemically strengthened glass uses an ion-exchange process rather than thermal tempering to achieve surface compression. It can be thinner than thermally tempered glass of equivalent strength and can be cut after processing. It is used in mobile device screens, appliance glass, and thin architectural panels.
Where Safety Glass Is Required by Code
Building codes specify locations where safety glazing is mandatory in residential and commercial properties. The primary reference for residential applications in the U.S. is the International Residential Code (IRC), which incorporates the CPSC safety glazing standard by reference. Commercial applications reference the International Building Code (IBC).
Safety glazing is required in:
- All glazed panels in and adjacent to doors, including the glass area within the door leaf and sidelites immediately beside the door
- Shower enclosures and bath enclosures
- Glass adjacent to swimming pools and spas
- Any glazed panel within 18 inches of a walking surface and within 36 inches of a door
- Skylights and overhead glazing
- Any glass panel larger than 9 square feet where the bottom edge is within 18 inches of the floor and the top edge is more than 36 inches above the floor, with a minimum panel dimension of 6 inches
In commercial properties, all glazed doors and sidelites must meet the Category II impact standard. Glass in fire-rated assemblies must also meet the applicable fire test standard.
Advanced Window & Glass Repair confirms the correct safety glazing specification for each location as a standard part of any replacement glass project across Northern Virginia, DC, and Maryland. Local authorities may adopt these codes with local amendments, so always confirm the specific requirements with the building authority before ordering.
Safety glazing code requirements apply to specific locations regardless of when the building was constructed. Installing replacement glass without confirming the safety glazing requirement for that specific location is a code violation. Call or get in touch with Advanced Window & Glass Repair via the contact page to confirm the correct glass specification before any replacement glass is ordered.
Choosing the Right Safety Glass for the Application
The correct safety glass type for a specific location depends on the nature of the impact hazard, the post-breakage requirement, any fire rating obligation, and the performance priorities of the installation.
For residential shower enclosures, door glass, and sidelites: Tempered glass is the standard specification. It meets the CPSC safety glazing requirement at a lower cost than laminated glass. If the glass is in an overhead position or in a location where glass retention after breakage is required, specify laminated glass instead.
For commercial storefronts and entrance doors: Tempered glass meets the minimum safety glazing requirement. Laminated glass provides better post-breakage security. For applications where forced-entry resistance is a priority, specify a laminated glass with a thicker PVB interlayer or a multi-layer construction rated to the appropriate forced-entry standard.
For skylights and overhead glazing: Laminated glass is the correct specification. A shattered overhead pane presents a serious injury risk from falling fragments regardless of whether the pieces are small (tempered) or large (annealed). The interlayer in laminated glass prevents this by holding the panel in place after breakage.
For fire-rated locations: Specify fire-rated glazing that also carries the safety glazing certification if the location requires both. Not all fire-rated glass meets the safety glazing standard. Confirm both certifications before specifying.
The U.S. Department of Energy guidance on window replacement and glass specification provides performance benchmarks for glass U-factors and solar heat gain, which are relevant when safety glass upgrades are being combined with energy performance improvements in Northern Virginia, DC, and Maryland properties.
Conclusion
Safety glass is not a single product. It is a category of glass types that each provide protection against injury from broken glass through different mechanisms. Tempered glass shatters into small blunt pieces. Laminated glass holds together. Fire-rated glass resists heat transmission. Each type suits specific applications and the correct choice depends on the location, the impact hazard, any regulatory requirement, and the post-breakage performance needed.
Building codes specify which locations require safety glazing and which category of impact rating applies. Installing non-safety glass in a required location is a code violation that creates liability and leaves occupants unprotected. Advanced Window & Glass Repair advises on safety glass specification as a standard part of any residential or commercial glass replacement project across Northern Virginia, DC, and Maryland. For a detailed comparison of tempered and laminated glass, the most commonly confused safety glass types, the tempered glass vs laminated glass guide covers the differences in construction, breakage pattern, and correct application in detail.
Advanced Window & Glass Repair supplies and installs safety glass across Northern Virginia, DC, and Maryland for residential and commercial applications. Call (571) 351-3692 or reach out through the contact page to confirm the correct glass specification for any replacement project.
Frequently Asked Questions
How do I know if a window has safety glass?
Look for a small etched or printed mark in one corner of the glass. Tempered glass carries a mark identifying it as tempered and stating the applicable standard (typically CPSC 16 CFR Part 1201 Cat I or Cat II). Laminated glass may also carry a mark, and its edge typically shows the interlayer as a slightly different-coloured line at the glass edge. If no mark is visible, the glass may not be safety-rated. A professional glass assessment can confirm the type during a site visit.
Can safety glass be cut to size on-site?
Tempered glass cannot be cut after tempering. It must be ordered to the exact finished size. Any cutting must be done before the glass goes through the tempering oven. Laminated glass can be cut after manufacture, though cutting requires specialist tools and techniques that differ from those used for standard glass. Fire-rated glass cannot be cut in the field.
What is the difference between Category I and Category II safety glass?
CPSC 16 CFR Part 1201 defines two impact categories. Category I is tested at 150 foot-pounds of impact energy and applies to smaller residential glazing panels. Category II is tested at 400 foot-pounds and applies to larger panels, commercial doors, and any location where higher-energy impacts are foreseeable. Commercial storefronts and entrance doors require Category II-rated glass.
Is all glass in shower enclosures required to be tempered?
Building codes in the U.S. require safety glazing in all shower and bath enclosures. Tempered glass is the standard specification because it shatters into small blunt pieces rather than sharp shards if struck. Laminated glass also meets the safety glazing requirement and is sometimes specified where glass retention after breakage is a priority. Standard annealed glass is not permitted in shower enclosures under current building codes.
Why does my replacement glass need to match the original safety glazing specification?
If the original glass in a safety-required location was safety-rated, the replacement must also be safety-rated. Installing standard annealed glass in a shower door, adjacent to an entry door, or in any other code-required safety glazing location to reduce cost creates a code violation and removes the safety protection that the original installation provided. The certification mark on the original glass confirms the required standard. Replace like for like, or upgrade the specification.
